ARE4H5EX 18/30kV SK1 3x1x120
Nexans ref. 10506026
- Packaging: m
- Conductor cross-section: 120 mm²
- Conductor diameter: 13.1 mm
- Minimum insulation thickness: 6.4 mm
- Nominal overall diameter of each phase cable: 40.6 mm
- Nominal overall diameter of triplex: 87.6 mm
ARE4H5EX 18/30kV SK1 3x1x150
Nexans ref. 10511186
- Packaging: m
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.3 mm
- Minimum insulation thickness: 6.2 mm
- Nominal overall diameter of each phase cable: 41.5 mm
- Nominal overall diameter of triplex: 89.4 mm
ARE4H5EX 18/30kV SK1 3x1x185
Nexans ref. 10513572
- Packaging: m
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.0 mm
- Minimum insulation thickness: 6.0 mm
- Nominal overall diameter of each phase cable: 42.8 mm
- Nominal overall diameter of triplex: 92.3 mm
ARE4H5EX 18/30kV SK1 3x1x240
Nexans ref. 10509833
- Packaging: m
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.5 mm
- Minimum insulation thickness: 5.8 mm
- Nominal overall diameter of each phase cable: 45 mm
- Nominal overall diameter of triplex: 97 mm
ARE4H5EX 18/30kV SK1 3x1x300
Nexans ref.
- Packaging: m
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.7 mm
- Minimum insulation thickness: 5.9 mm
- Nominal overall diameter of each phase cable: 47.6 mm
- Nominal overall diameter of triplex: 102.5 mm
ARE4H5EX 18/30kV SK1 3x1x400
Nexans ref.
- Packaging: m
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.5 mm
- Minimum insulation thickness: 6.0 mm
- Nominal overall diameter of each phase cable: 50.7 mm
- Nominal overall diameter of triplex: 109.3 mm
ARE4H5EX 18/30kV SK1 3x1x50
Nexans ref.
- Packaging: m
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.2 mm
- Minimum insulation thickness: 7.1 mm
- Nominal overall diameter of each phase cable: 37.5 mm
- Nominal overall diameter of triplex: 80.7 mm
ARE4H5EX 18/30kV SK1 3x1x70
Nexans ref. 10509832
- Packaging: m
- Conductor cross-section: 70 mm²
- Conductor diameter: 9.8 mm
- Minimum insulation thickness: 7.1 mm
- Nominal overall diameter of each phase cable: 38.6 mm
- Nominal overall diameter of triplex: 83.3 mm
ARE4H5EX 18/30kV SK1 3x1x95
Nexans ref. 10565044
- Packaging: m
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.5 mm
- Minimum insulation thickness: 6.6 mm
- Nominal overall diameter of each phase cable: 39.4 mm
- Nominal overall diameter of triplex: 84.8 mm
Description
Description
Standards
-
InternationalHD 620; IEC 60502-2
-
NationalCEI 20-68

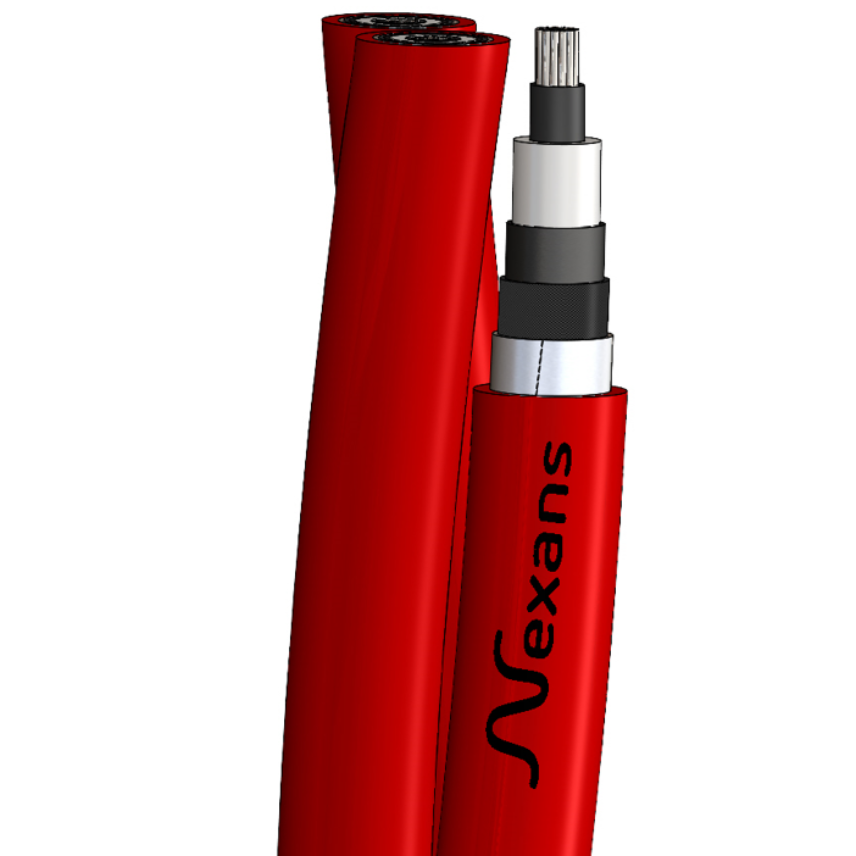

Three single core cables in triplex formation with aluminium conductor, reduced thickness cross-linked polyethylene (XLPE) insulation, aluminium tape screen, reinforced polyethylene (PE) based outer sheath. Longitudinal and radial watertightness, shock resistant.
Application:
Suitable for fixed installation indoor or outdoor laying in air or directly / indirectly buried, also in wet location. “ Shock Proof” SK1 has a very good shock resistance characteristics. The two special outer sheaths provide an excellent protection against impact and mechanical abuse during the lifetime of the cable. “Shock Proof” SK1 cable performances has been evaluated against mechanical protection by the abrasion test and the impact test included in HD 620-10-I3 standard. This type of cable can be directly buried without additional protections because it is comparable to an armoured cable.
Construction:
- Conductor: stranded, compacted, round aluminium – Cl. 2 (IEC 60228)
- Conductor screen: extruded semiconducting compound
- Insulation: extruded cross-linked polyethylene compound (XLPE)
- Insulation screen: extruded semiconducting compound – fully bonded
- Longitudinal watertightness: semiconducting water blocking tape
- Screen and radial watertightness: aluminium tape longitudinally applied (Nominal thickness: 0,2 mm)
- Sheath: extruded Polyethylene compound - Colour: red
Functional characteristics:
- Rated voltages U0/U: 18/30 kV
- Max. operating temperature of conductor: 90°C
- Max. short circuit temperature of conductor: 250°C (max 5s)
- Max. short circuit temperature of screen: 150°C
- Min. installation temperature: -25°C
- Max. tensile strength on the conductor during installation: 50 N/mm2
- Min. bending radius during installation: 21Dphase
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
