ARE4EX 0,6/1kV 3x240+150N IT
ARE4EX 0,6/1kV 3x240+150N IT
- Nexans ref. : 10547934
Description
Description
Standards
-
NationalGSC002
Description

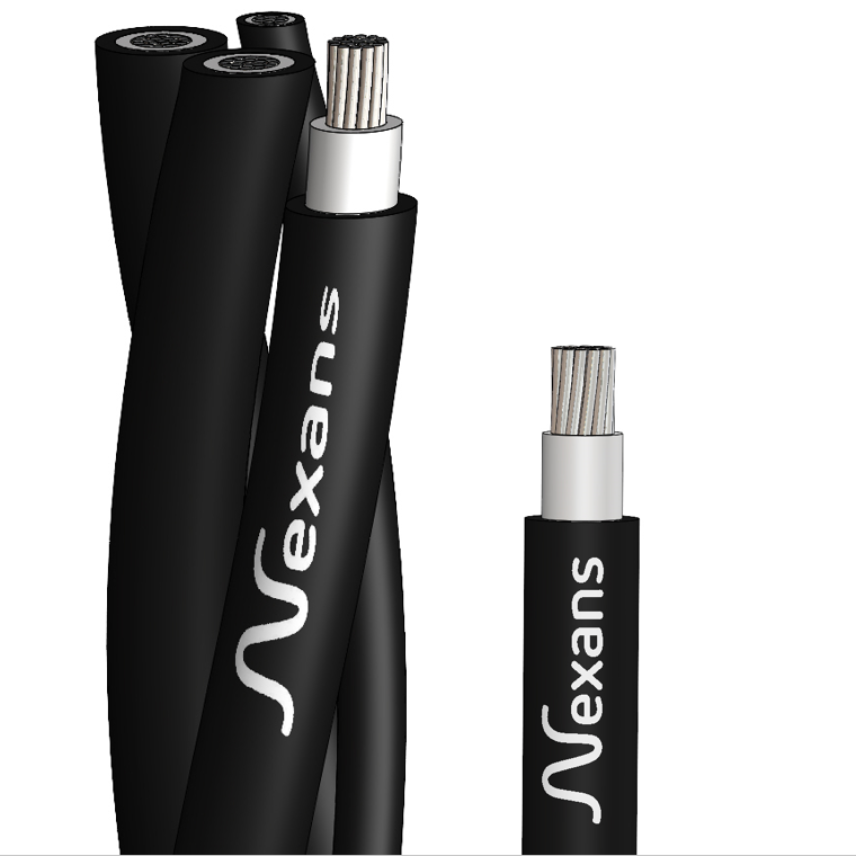

Single core and helically bundled tetra polar cables with aluminium conductor, XLPE insulation, polyolefin outer sheath.
Cables compliant with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011”.
Fire performance class: Eca
Application:
Suitable for fixed installation laying indirectly buried.
Construction
- Conductor: stranded, compacted, round aluminium – Cl. 2 (CEI EN 60228).
- Insulation: extruded polyethylene (XLPE) compound.
- Outer sheath: extruded polyolefin (PO) compound. Colour: black.
Functional characteristics
- Rated voltages U0/U: 0,6/1 kV
- Max. operating temperature of conductor: 90°C
- Max. short circuit temperature of conductor: 250°C (max 5s)
- Min. installation temperature: -25°C
- Max. tensile strength on the conductor during installation: 50 N/mm2
- Min. bending radius during installation (single core cables): 6 Dcable
- Min. bending radius during installation (quadripolar cables): 9 Dphase
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Round, stranded and compacted
Conductor flexibility
Class 2 acc. to IEC 60228
With smaller neutral conductor
Yes
Neutral Type
Aluminium - Class 2 acc. to IEC 60228
Insulation
Extruded XLPE compound
Insulation colour
Natural
Lay Up
Twisted single cores
Outer sheath
Extruded polyolefin-based thermoplastic compound
Sheath colour
Black
Dimensional characteristics
Dimensional characteristics
Number of cores
4
Number of phases
3
Conductor cross-section
- mm²
Phase Conductor Cross Section
240 mm²
Neutral conductor section (when smaller)
150 mm²
Conductor diameter
- mm
Phase Conductor Diameter
18.5 mm
Neutral Conductor Diameter
14.3 mm
Average insulation thickness
1.7 mm
Insulation thickness of neutral conductor
1.40 mm
Average sheath thickness
1.5 mm
Sheath thickness of the neutral conductor
1.40 mm
Nominal outer diameter
- mm
Nominal overall diameter of each phase cable
26.9 mm
Nominal overall diameter
61.7 mm
Approximate weight
3200 kg/km
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Max. DC resistance of the conductor at 20°C
- Ohm/km
Permissible short circuit current conductor 1s
- kA
Resources
Resources
Declaration of Performance
- Declaration of Performance n� : 1000787-ITBP
- Certification Date : 7/3/25
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0051
- Declared performance : Eca
