ARE4H5EX 18/30kV SR/0,2 / Eca
ARE4H5EX 18/30kV SR/0,2 / Eca
Cables compliant with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011”
Read moreARE4H5EX 18/30kV SR/0,2 3x1x150
Nexans ref. 10578834
- Packaging: m
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.3 mm
- Minimum insulation thickness: 6.2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter of each phase cable: 36.2 mm
- Nominal overall diameter of triplex: 78 mm
ARE4H5EX 18/30kV SR/0,2 3x1x185
Nexans ref. 10578837
- Packaging: m
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.0 mm
- Minimum insulation thickness: 6.0 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter of each phase cable: 37.6 mm
- Nominal overall diameter of triplex: 81 mm
ARE4H5EX 18/30kV SR/0,2 3x1x240
Nexans ref. 10578838
- Packaging: m
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.5 mm
- Minimum insulation thickness: 5.8 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal overall diameter of each phase cable: 40 mm
- Nominal overall diameter of triplex: 86.2 mm
ARE4H5EX 18/30kV SR/0,2 3x1x300
Nexans ref. 10578859
- Packaging: m
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.7 mm
- Minimum insulation thickness: 5.9 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter of each phase cable: 42.6 mm
- Nominal overall diameter of triplex: 91.9 mm
ARE4H5EX 18/30kV SR/0,2 3x1x400
Nexans ref. 10578860
- Packaging: m
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.5 mm
- Minimum insulation thickness: 6.0 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter of each phase cable: 46 mm
- Nominal overall diameter of triplex: 99.1 mm
ARE4H5EX 18/30kV SR/0,2 3x1x95
Nexans ref. 10578827
- Packaging: m
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.5 mm
- Minimum insulation thickness: 6.6 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter of each phase cable: 33.9 mm
- Nominal overall diameter of triplex: 73.1 mm
Description
Description
Standards
-
InternationalHD 620; IEC 60502-2

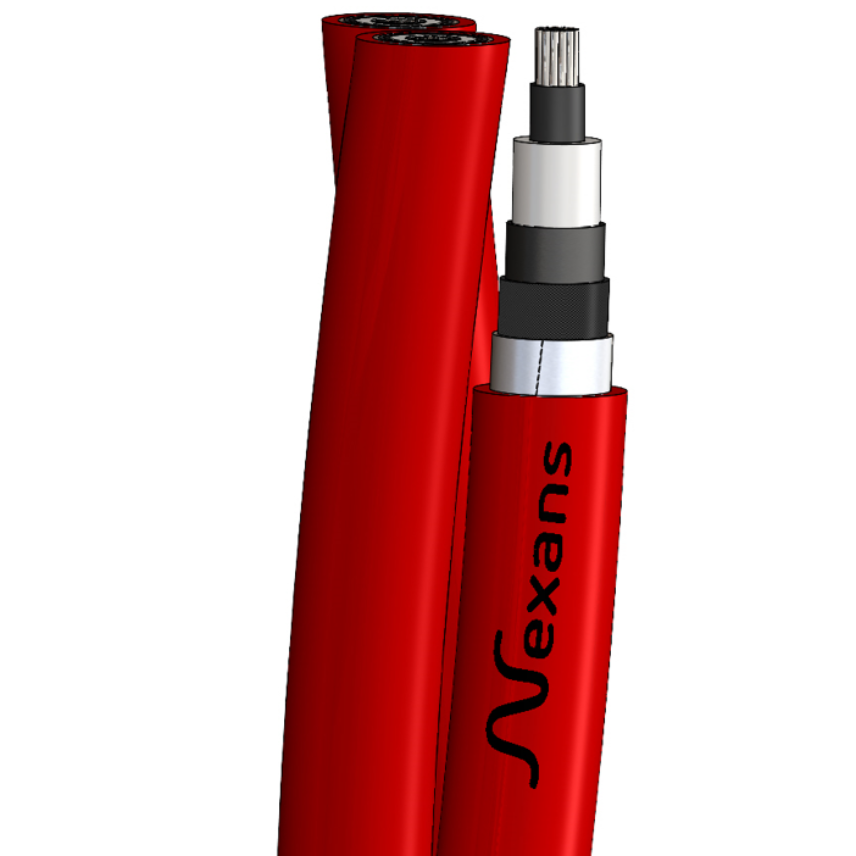

Three single core cables in triplex formation with aluminium conductor, reduced thickness cross-linked polyehtylene (XLPE) insulation, aluminium tape screen, polyethylene (PE) based outer sheath. Longitudinal and radial watertightness.
Cables compliant with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011”
Fire performance class: Eca
Application:
Suitable for fixed installation indoor or outdoor laying in air or directly / indirectly buried, also in wet location.
Construction:
- Conductor: stranded, compacted, round aluminium – Cl. 2 (IEC 60228)
- Conductor screen: extruded semiconducting compound
- Insulation: extruded cross-linked polyethylene compound (XLPE)
- Insulation screen: extruded semiconducting compound – fully bonded
- Longitudinal watertightness: semiconducting water blocking tape
- Screen and radial watertightness: aluminium tape longitudinally applied (Nominal thickness: 0,2 mm)
- Sheath: extruded Polyethylene compound - Colour: red
Functional characteristics:
- Rated voltages U0/U: 18/30 kV
- Max. operating temperature of conductor: 90°C
- Max. short circuit temperature of conductor: 250°C (max 5s)
- Max. short circuit temperature of screen: 150°C
- Min. installation temperature: -25°C
- Max. tensile strength on the conductor during installation: 50 N/mm2
- Min. bending radius during installation: 21Dphase
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
