ARE4EX 0,6/1kV INRETE / Eca
Description
Description
Standards
-
ProductHD 603; IEC 60502-1
Description

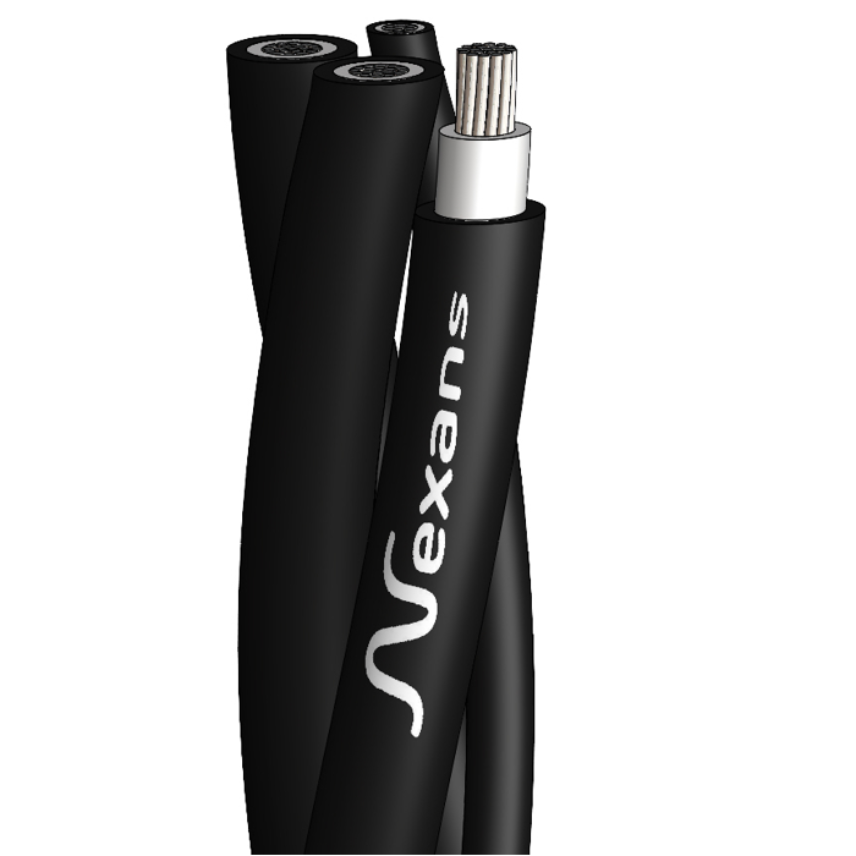

Helically bundled tetra polar cables with aluminium conductor, XLPE insulation, polyolefin outer sheath.
Cables compliant with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011”.
Fire performance class: Eca
Application:
Suitable for fixed installation laying indirectly buried.
Construction
- Conductor: stranded, compacted, round aluminium – Cl. 2 (CEI EN 60228).
- Insulation: extruded polyethylene (XLPE) compound.
- Outer sheath: extruded polyolefin (PO) compound. Colour: black.
Functional characteristics
- Rated voltages U0/U: 0,6/1 kV
- Max. operating temperature of conductor: 90°C
- Max. short circuit temperature of conductor: 250°C (max 5s)
- Min. installation temperature: -25°C
- Max. tensile strength on the conductor during installation: 50 N/mm2
- Min. bending radius during installation: 9 Dphase
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Round, stranded and compacted
Conductor flexibility
Class 2 acc. to IEC 60228
With smaller neutral conductor
Yes
Neutral Type
Aluminium - Class 2 acc. to IEC 60228
Insulation
Extruded XLPE compound
Insulation colour
Natural
Lay Up
Twisted single cores
Outer sheath
Extruded polyolefin-based thermoplastic compound
Sheath colour
Black
Dimensional characteristics
Dimensional characteristics
Number of cores
4
Number of phases
3
Phase Conductor Cross Section
150 mm²
Neutral conductor section (when smaller)
95 mm²
Phase Conductor Diameter
14.3 mm
Neutral Conductor Diameter
11.5 mm
Average insulation thickness
1.4 mm
Insulation thickness of neutral conductor
1.10 mm
Average sheath thickness
1.4 mm
Sheath thickness of the neutral conductor
1.40 mm
Nominal overall diameter of each phase cable
21.6 mm
Nominal overall diameter
50.0 mm
Approximate weight
2040 kg/km
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
