A(U)RE4*CE 0,6/1kV / E_ca

Description

Single core cables with concentric conductor. Phase with aluminium conductor and XLPE insulation, copper concentric conductor, polyolefin outer sheath.

Cables compliant with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011”.

Fire performance class:  E_ca

Application:

Suitable for fixed installation laying indirectly buried.

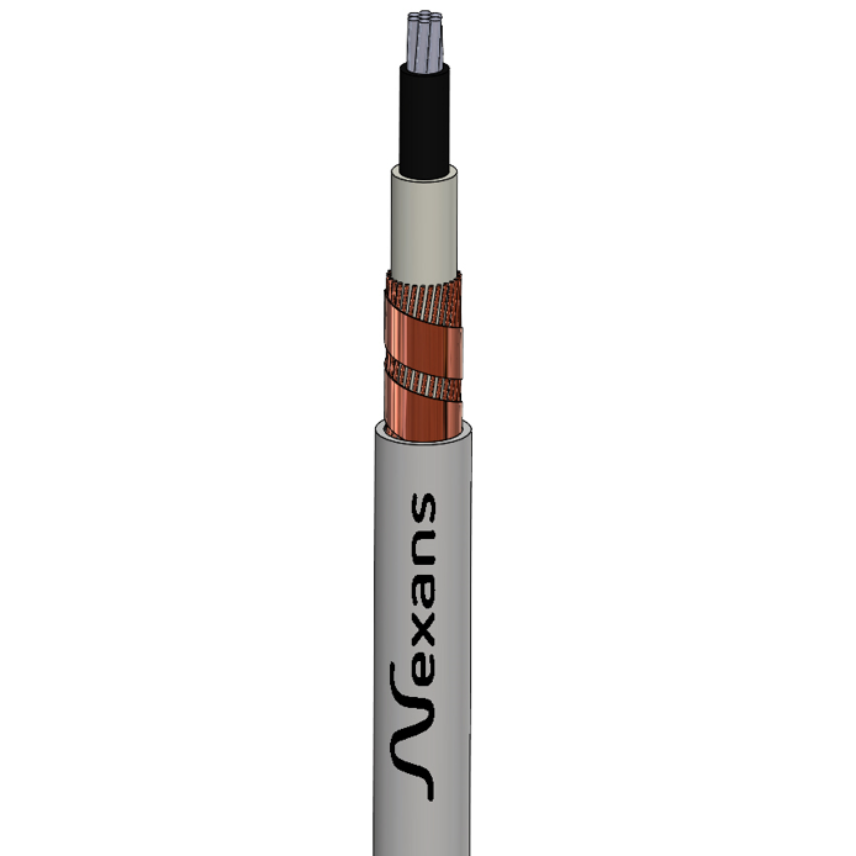

Construction

• Conductor: solid, round aluminium – Cl. 1 (CEI EN 60228) (up to 10 mm²);
• stranded, compacted, round aluminium – Cl. 2 (CEI EN 60228) (above 10 mm²).
• Insulation: extruded polyethylene (XLPE) compound. Colour: black.
• Filler (only for 1x25+16C): extruded not hygroscopic compound.
• Concentric conductor: copper wires (CU).
• Binder tape (only for 1x25+16C): copper tape.
• Outer sheath: extruded polyolefin (PO) compound. Colour: grey.

Functional characteristics

• Rated voltages U₀/U: 0,6/1 kV
• Max. operating temperature of conductor (phase): 90°C
• Max. short circuit temperature of conductor (phase): 250°C (max 5s)
• Min. installation temperature: -25°C
• Max. tensile strength on the conductor during installation: 50 N/mm²
• Min. bending radius during installation: 8 D_cable
