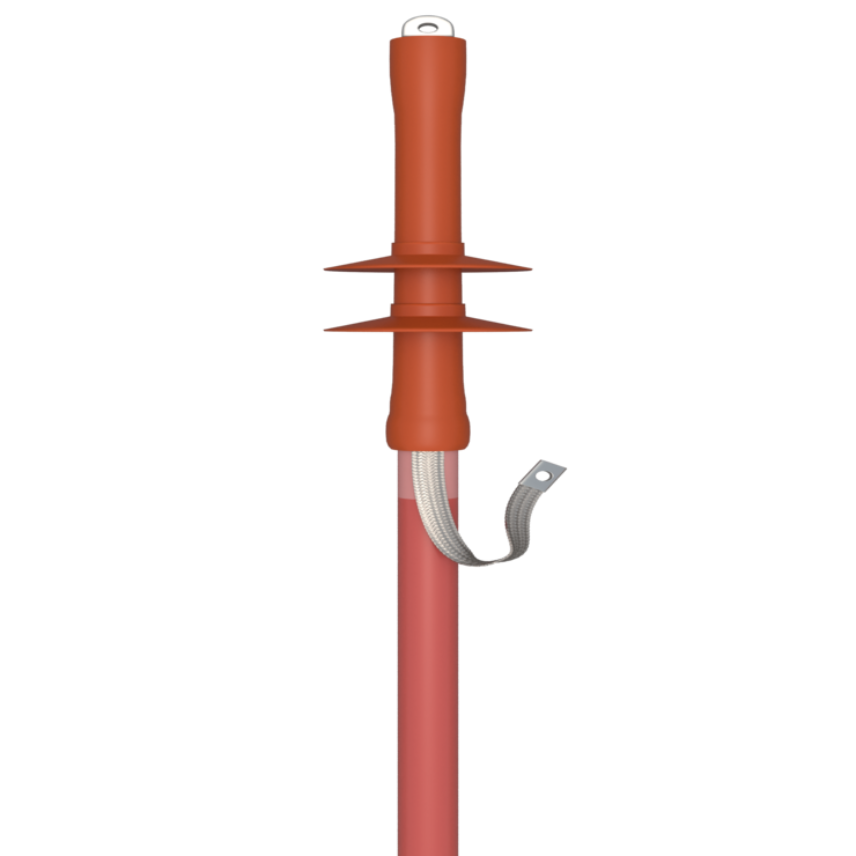

Heat shrink outdoor termination MONOe AI

APPLICATION

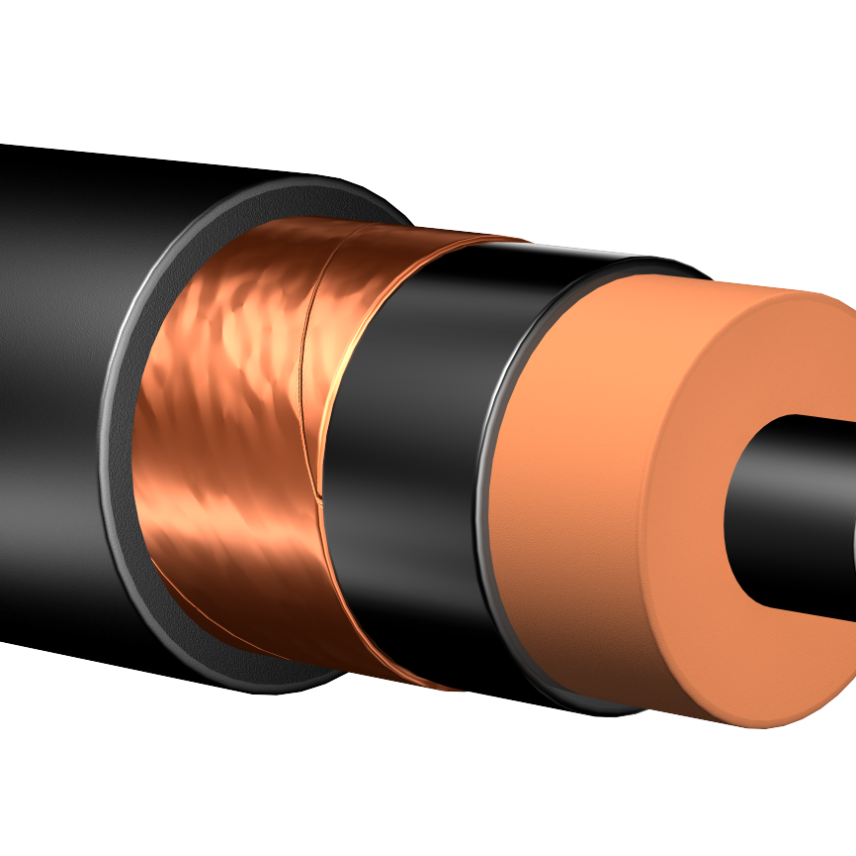

The ‘’MONOe A’’ terminations are a single component solution, for single core polymeric cables.

TECHNICAL FEATURES

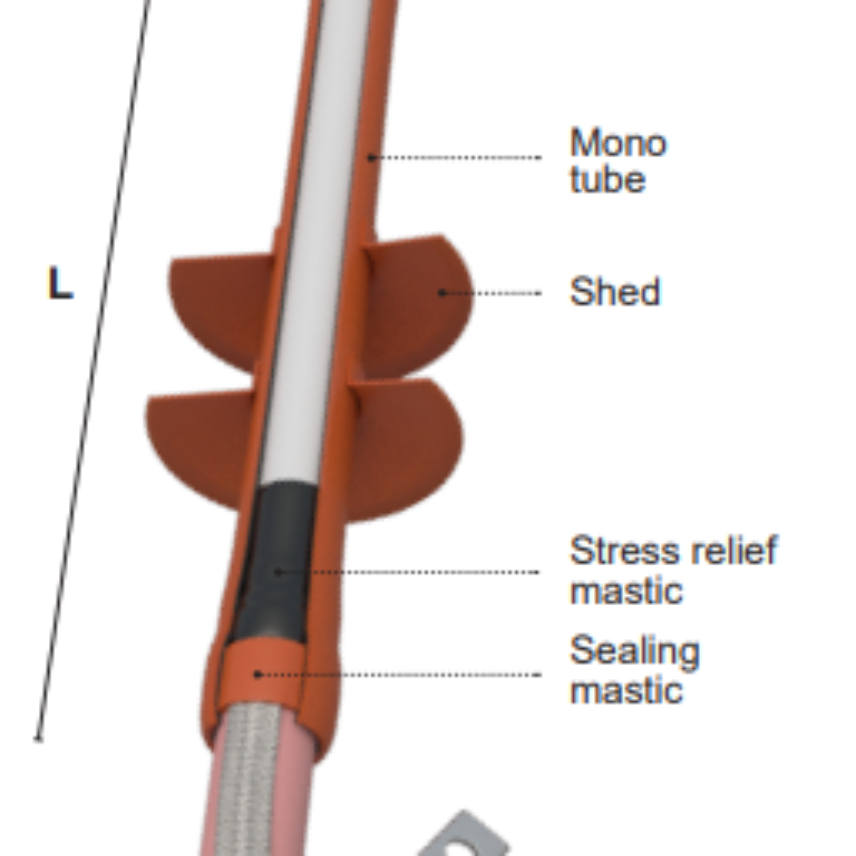

The ‘’MONOe A’’ outdoor terminations are designed for max system voltages of 42 kV. Easy, quick to install, reducing installation time and errors. The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic. Anti-tracking rain sheds are supplied to withstand outdoor environments. A solderless roll force spring and an earthing braid is included in the kit. The design accommodates various conductor lugs. MC types are supplied with “GPH” mechanical conductor lugs. Each “MONOe A” termination kit contains material to allow for 3 phase installation
