Heat shrink outdoor termination MONOe FCi

APPLICATION

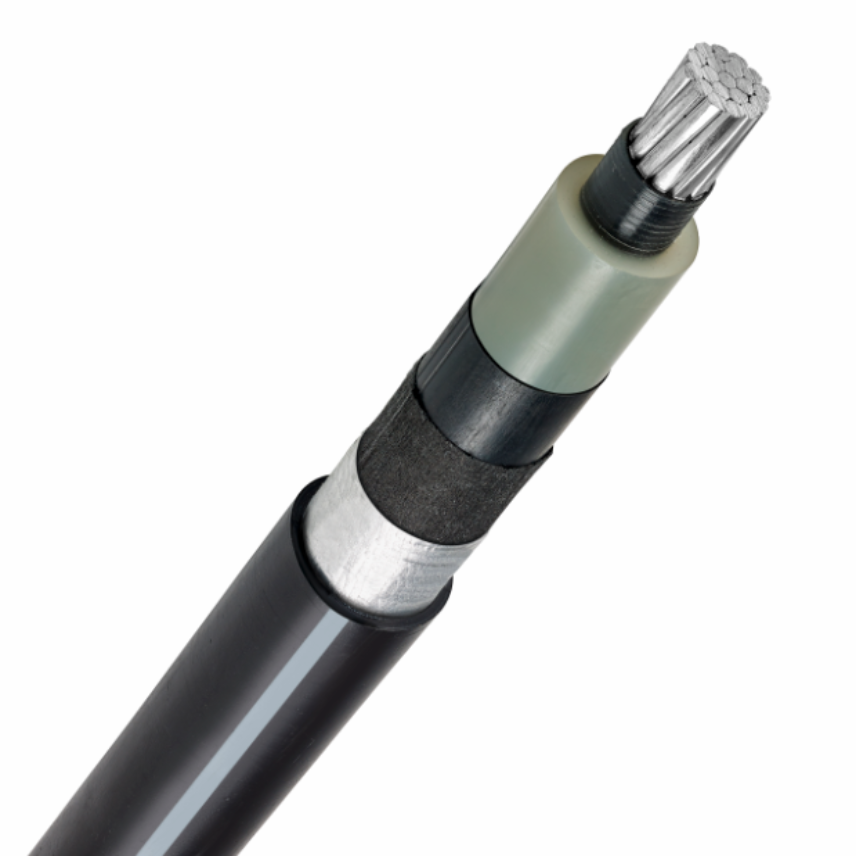

The ‘’MONOe FCi’’ terminations are a single component solution, for single core polymeric cables.

TECHNICAL FEATURES

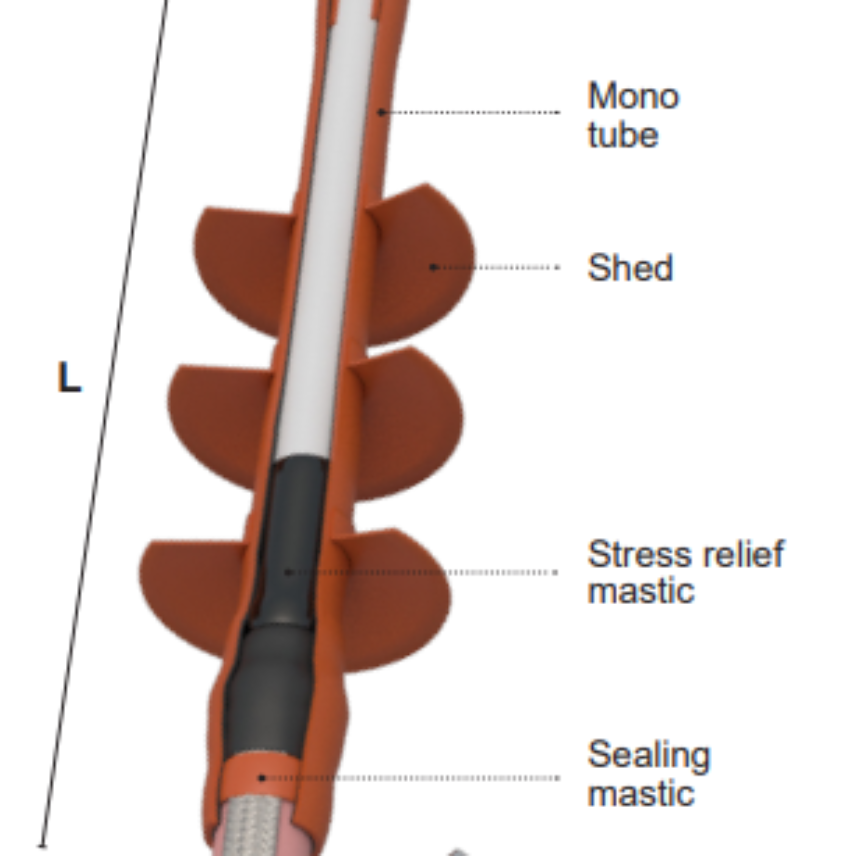

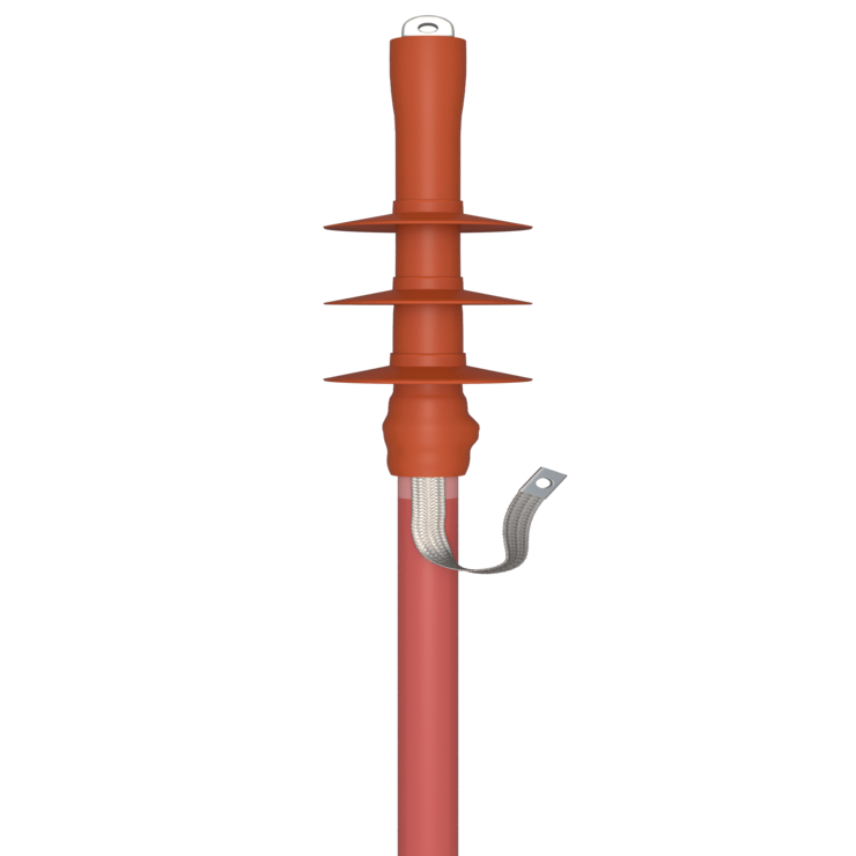

The ‘’MONOe FCi’’ outdoor terminations are designed for max system voltages of 42 kV. Easy, quick to install, reducing installation time and errors. The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic. Anti-tracking rain sheds are supplied to withstand outdoor environments. A cheese-rasp + earthing braid is included in the kit. The design accommodates various conductor lugs. MC types are supplied with “GPH” mechanical conductor lugs. Each “MONOe FCi” termination kit contains material to allow for 3 phase installation. WSK 2.0 type with “T” braid and roll force spring instead of cheese rasp available upon request.
