Heat shrink indoor termination TTGIC3 W
Heat shrink indoor termination TTGIC3 W
Heat-shrinkable MV indoor terminations for belted PILC cables W. armor
Up to 8,7/15 (17,5) kV
24TTGIC3.400W
Nexans ref. 24TTGIC3.400W
- Conductor cross-section, range: 185 ... 400 mm²
- Length: 680 mm
24TTGIC3.240W
Nexans ref. 24TTGIC3.240W
- Conductor cross-section, range: 50 ... 240 mm²
- Length: 680 mm
36TTGIC3.300W
Nexans ref. 36TTGIC3.300W
- Conductor cross-section, range: 150 ... 300 mm²
- Length: 960 mm
36TTGIC3.400W
Nexans ref. 36TTGIC3.400W
- Conductor cross-section, range: 240 ... 400 mm²
- Length: 960 mm
36TTGIC3.120W
Nexans ref. 36TTGIC3.120W
- Conductor cross-section, range: 35 ... 120 mm²
- Length: 960 mm
Description
Description
Standards
-
InternationalHD 629.2 S2; IEC 60502-4
Application

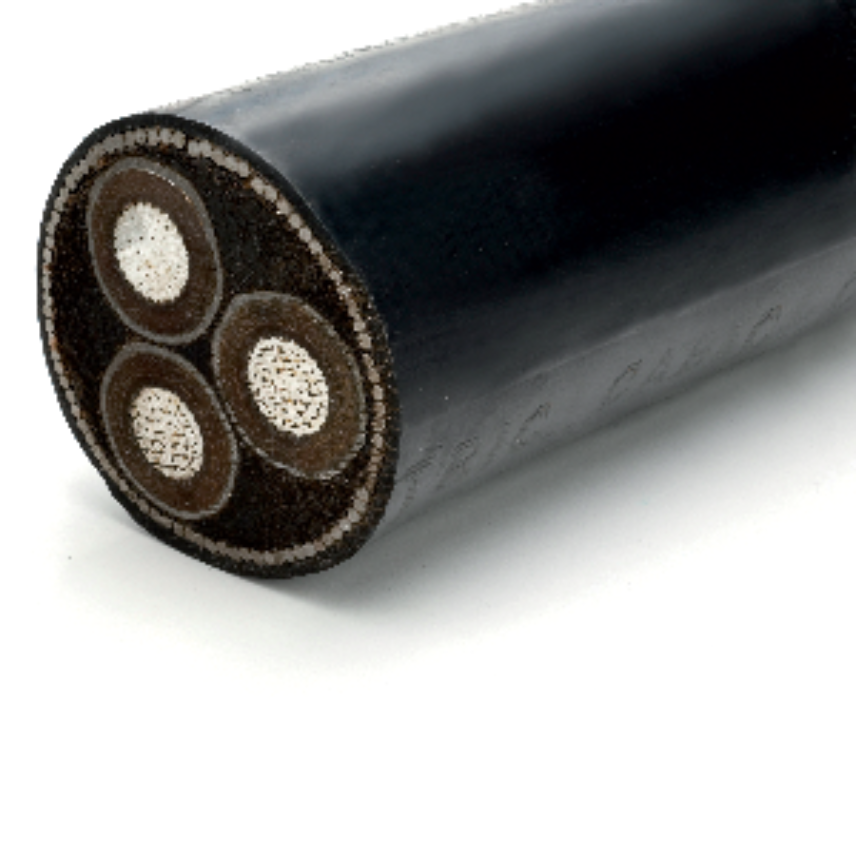

TTCI3 W heat-shrinkable indoor terminations for three core armored mind/PilC belted paper cables up to 17kV.
Technical description
The cables cores are covered with oil resistant tubing.
The crotch area and gaps are filled and covered with stress grading mastic.
A 3 finger semi-conductive breakout then covers the crotch.
Stress grading mastic is applied over the breakout fingers, covered by stress control tubing.
GT2 anti-tracking tubes covers each core and the lugs.
Anti-tracking mastic is applied over the lugs, earthing and armour.
The environmental seal of the armour connection is made with GT3 adhesive lined, medium wall tubing.
