CAPT Heat-Shrinkable Cable End Cap with Adhesive
CAPT Heat-Shrinkable Cable End Cap with Adhesive
HEAT-SHRINKABLE CABLE END CAPS WITH ADHESIVE
Up to Umax 1,2kV
CAPT105
Nexans ref. CAPT105

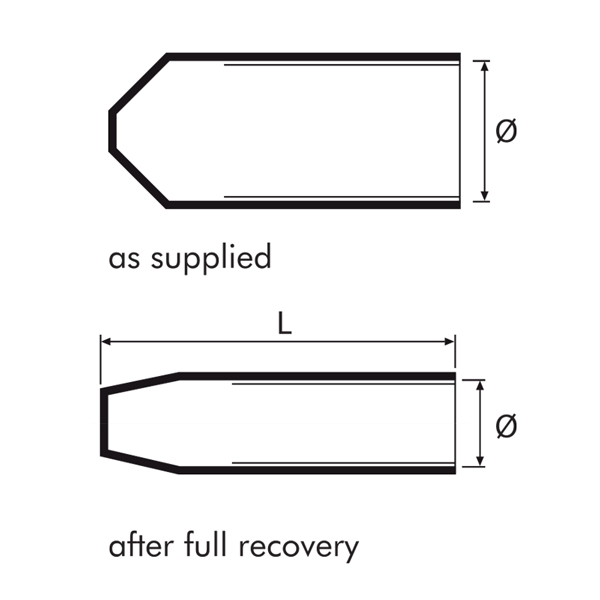

- Diameter before shrinking: 105 mm
- Diameter after shrinking: 45 mm
- Length: 120 mm
CAPT12
Nexans ref. CAPT12
- Diameter before shrinking: 12 mm
- Diameter after shrinking: 4.5 mm
- Length: 35 mm
CAPT14
Nexans ref. CAPT14
- Diameter before shrinking: 14 mm
- Diameter after shrinking: 6 mm
- Length: 35 mm
CAPT145
Nexans ref. CAPT145
- Diameter before shrinking: 145 mm
- Diameter after shrinking: 57 mm
- Length: 140 mm
CAPT160
Nexans ref. CAPT160
- Diameter before shrinking: 158 mm
- Diameter after shrinking: 60 mm
- Length: 140 mm
CAPT20
Nexans ref. CAPT20
- Diameter before shrinking: 20 mm
- Diameter after shrinking: 8 mm
- Length: 45 mm
CAPT26
Nexans ref. CAPT26
- Diameter before shrinking: 26 mm
- Diameter after shrinking: 11 mm
- Length: 60 mm
CAPT40
Nexans ref. CAPT40
- Diameter before shrinking: 40 mm
- Diameter after shrinking: 16 mm
- Length: 100 mm
CAPT57
Nexans ref. CAPT57
- Diameter before shrinking: 57 mm
- Diameter after shrinking: 22 mm
- Length: 100 mm
CAPT75
Nexans ref. CAPT75
- Diameter before shrinking: 75 mm
- Diameter after shrinking: 32 mm
- Length: 120 mm
Description
Description
Application

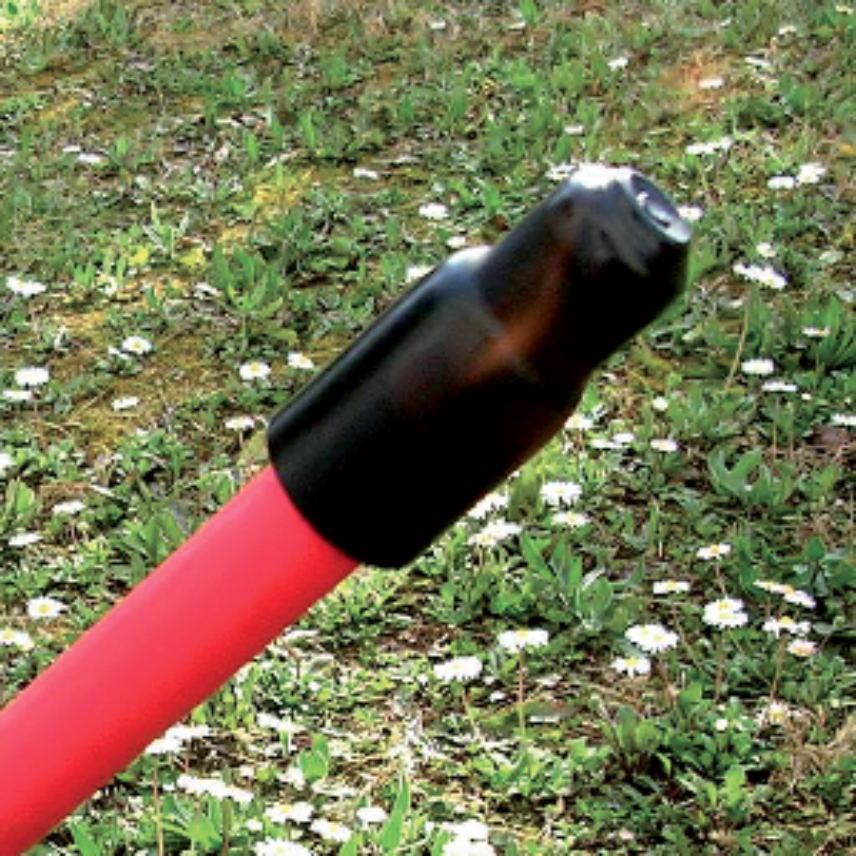

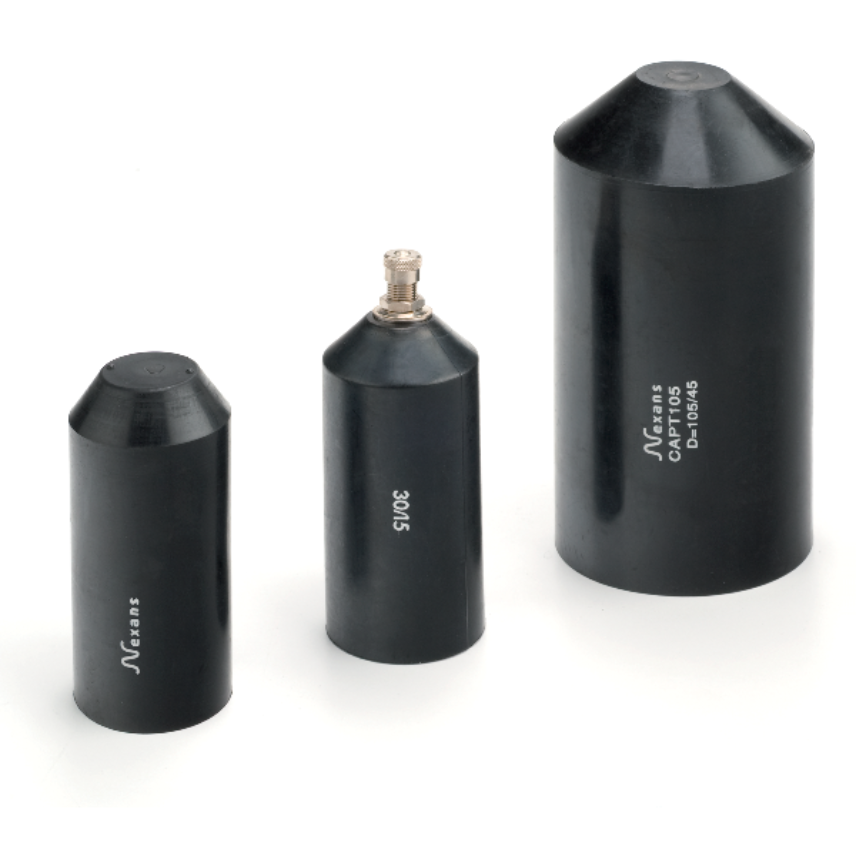

CAPT injection molded, heat-shrinkable, insulating cable end caps.
The caps are available with or without valve (for valve please order CAPTV).
The caps are weather and uv resistant, and the adhesive lined versions prevent moisture and water ingress.
The CAPT with adhesive can also be utilized as low voltage live end seals.
Sold as separate kits, with appropriate marking.
Technical characteristics
| Material | Crosslinked polyolefin | |
| Colour | Black | |
| Continuous operating temp. | -40°C to +135°C | |
| Minimum shrink temp. | 125°C | |
| Density | 1 g/cm3±10% | ASTM D-1505 / ISO R1183 |
| Tensile strength | >8 N/mm2 | ASTM D-412 / ISO 37 |
| Ultimate elongation | 300% | ASTM D-412 / ISO 37 |
| Dielectric constant | <5 | IEC 250 |
| Volume resistivity | >1x1013ohm.cm | IEC 93 |
| Dielectric strength | >10 kV/mm | IEC 243 |
