ARG7R 0,6/1kV

Products

ARG7R 0,6/1kV 1x16

Nexans ref. 10512961

  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Average insulation thickness: 0.7 mm
  • Diameter over insulation: 6.3 mm
  • Average sheath thickness: 1.4 mm
  • Nominal outer diameter: 10.0 mm
  • Approximate weight: 120 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 2.449 Ohm/km
  • Permissible short circuit current conductor 1s: 1.5 kA



ARG7R 0,6/1kV 1x25

Nexans ref. 10530003

  • Conductor cross-section: 25 mm²
  • Conductor diameter: 6.0 mm
  • Average insulation thickness: 0.9 mm
  • Diameter over insulation: 8.0 mm
  • Average sheath thickness: 1.4 mm
  • Nominal outer diameter: 11.8 mm
  • Approximate weight: 160 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 1.539 Ohm/km
  • Permissible short circuit current conductor 1s: 2.4 kA



ARG7R 0,6/1kV 1x35

Nexans ref. 10513021

  • Conductor cross-section: 35 mm²
  • Conductor diameter: 7.0 mm
  • Average insulation thickness: 0.9 mm
  • Diameter over insulation: 9.0 mm
  • Average sheath thickness: 1.4 mm
  • Nominal outer diameter: 12.8 mm
  • Approximate weight: 200 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 1.113 Ohm/km
  • Permissible short circuit current conductor 1s: 3.3 kA



ARG7R 0,6/1kV 1x50

Nexans ref. 10513022

  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.2 mm
  • Average insulation thickness: 1.0 mm
  • Diameter over insulation: 10.4 mm
  • Average sheath thickness: 1.4 mm
  • Nominal outer diameter: 14.3 mm
  • Approximate weight: 250 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.822 Ohm/km
  • Permissible short circuit current conductor 1s: 4.7 kA



ARG7R 0,6/1kV 1x70

Nexans ref. 10513019

  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.8 mm
  • Average insulation thickness: 1.1 mm
  • Diameter over insulation: 12.2 mm
  • Average sheath thickness: 1.4 mm
  • Nominal outer diameter: 16.2 mm
  • Approximate weight: 330 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.568 Ohm/km
  • Permissible short circuit current conductor 1s: 6.6 kA



ARG7R 0,6/1kV 1x95

Nexans ref. 10513040

  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.5 mm
  • Average insulation thickness: 1.1 mm
  • Diameter over insulation: 13.9 mm
  • Average sheath thickness: 1.5 mm
  • Nominal outer diameter: 18.2 mm
  • Approximate weight: 420 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.411 Ohm/km
  • Permissible short circuit current conductor 1s: 9 kA



ARG7R 0,6/1kV 1x120

Nexans ref. 10514270

  • Conductor cross-section: 120 mm²
  • Conductor diameter: 13.1 mm
  • Average insulation thickness: 1.2 mm
  • Diameter over insulation: 15.7 mm
  • Average sheath thickness: 1.5 mm
  • Nominal outer diameter: 20.1 mm
  • Approximate weight: 520 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.325 Ohm/km
  • Permissible short circuit current conductor 1s: 11.3 kA



ARG7R 0,6/1kV 1x150

Nexans ref. 10513041

  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.3 mm
  • Average insulation thickness: 1.4 mm
  • Diameter over insulation: 17.4 mm
  • Average sheath thickness: 1.6 mm
  • Nominal outer diameter: 22.1 mm
  • Approximate weight: 630 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.265 Ohm/km
  • Permissible short circuit current conductor 1s: 14.2 kA



ARG7R 0,6/1kV 1x185

Nexans ref. 10514271

  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.0 mm
  • Average insulation thickness: 1.6 mm
  • Diameter over insulation: 19.5 mm
  • Average sheath thickness: 1.6 mm
  • Nominal outer diameter: 24.3 mm
  • Approximate weight: 760 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.211 Ohm/km
  • Permissible short circuit current conductor 1s: 17.5 kA



ARG7R 0,6/1kV 1x240

Nexans ref. 10513042

  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.5 mm
  • Average insulation thickness: 1.7 mm
  • Diameter over insulation: 22.2 mm
  • Average sheath thickness: 1.7 mm
  • Nominal outer diameter: 27.3 mm
  • Approximate weight: 970 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.162 Ohm/km
  • Permissible short circuit current conductor 1s: 22.7 kA



ARG7R 0,6/1kV 1x300

Nexans ref. 10513043

  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.7 mm
  • Average insulation thickness: 1.8 mm
  • Diameter over insulation: 24.6 mm
  • Average sheath thickness: 1.8 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate weight: 1180 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.13 Ohm/km
  • Permissible short circuit current conductor 1s: 28.3 kA



ARG7R 0,6/1kV 1x400

Nexans ref. 10532886

  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.5 mm
  • Average insulation thickness: 2.0 mm
  • Diameter over insulation: 27.8 mm
  • Average sheath thickness: 1.9 mm
  • Nominal outer diameter: 33.6 mm
  • Approximate weight: 1480 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.102 Ohm/km
  • Permissible short circuit current conductor 1s: 37.8 kA



ARG7R 0,6/1kV 1x500

Nexans ref. 10520327

  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.5 mm
  • Average insulation thickness: 2.2 mm
  • Diameter over insulation: 31.2 mm
  • Average sheath thickness: 2.0 mm
  • Nominal outer diameter: 37.4 mm
  • Approximate weight: 1870 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.08 Ohm/km
  • Permissible short circuit current conductor 1s: 47.2 kA



Description

Description

Standards

  • National
    CEI 20-13

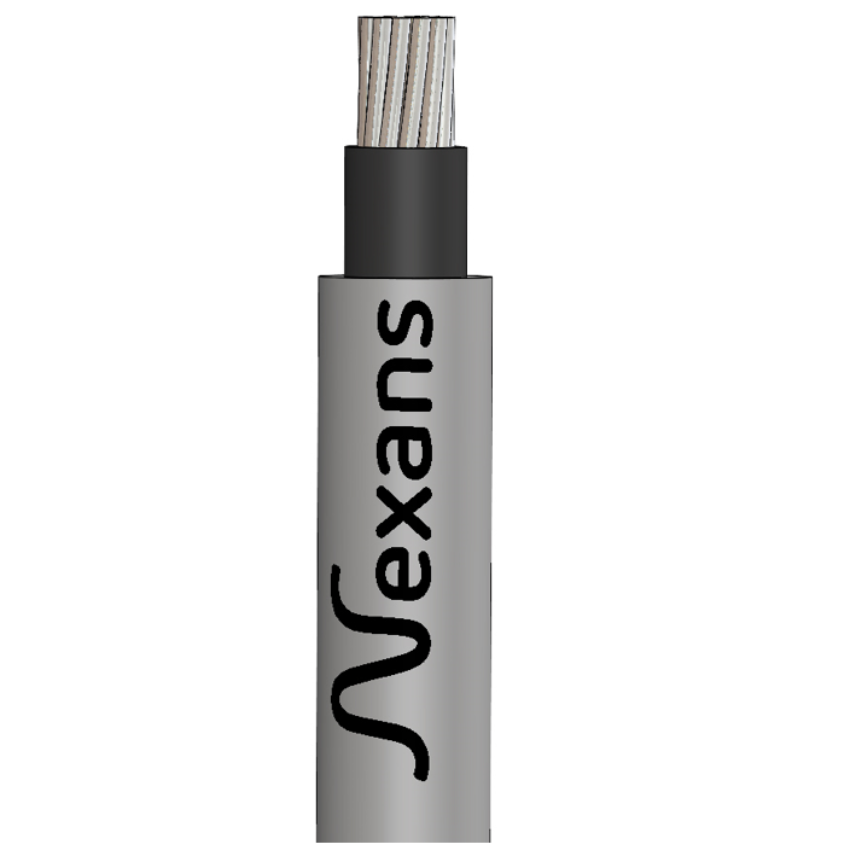

Single core cables with aluminium conductor, elastomeric insulation, PVC outer sheath.

Application:

Suitable for fixed installation indoor or outdoor laying in air or indirectly buried.

Construction:

  • Conductor: stranded, compacted, round aluminum – Cl. 2 (CEI EN 60228).
  • Insulation: cross-linked compound. Colour: black.
  • Outer sheath: extruded PVC compound. Colour: grey.

Functional characteristics:

  • Rated voltages U0/U: 0,6/1 kV
  • Max. operating temperature of conductor: 90°C
  • Max. short circuit temperature of conductor: 250°C (max 5s)
  • Min. installation temperature: 0°C
  • Max. tensile strength on the conductor during installation: 50 N/mm2
  • Min. bending radius during installation: 6 Dcable

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Conductor shape
Round, stranded and compacted
Conductor flexibility
Class 2 IEC 60228
Insulation
Cross-linked compound
Insulation colour
Black
Lay Up
Single core
Outer sheath
PVC compound
Sheath colour
Grey

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
