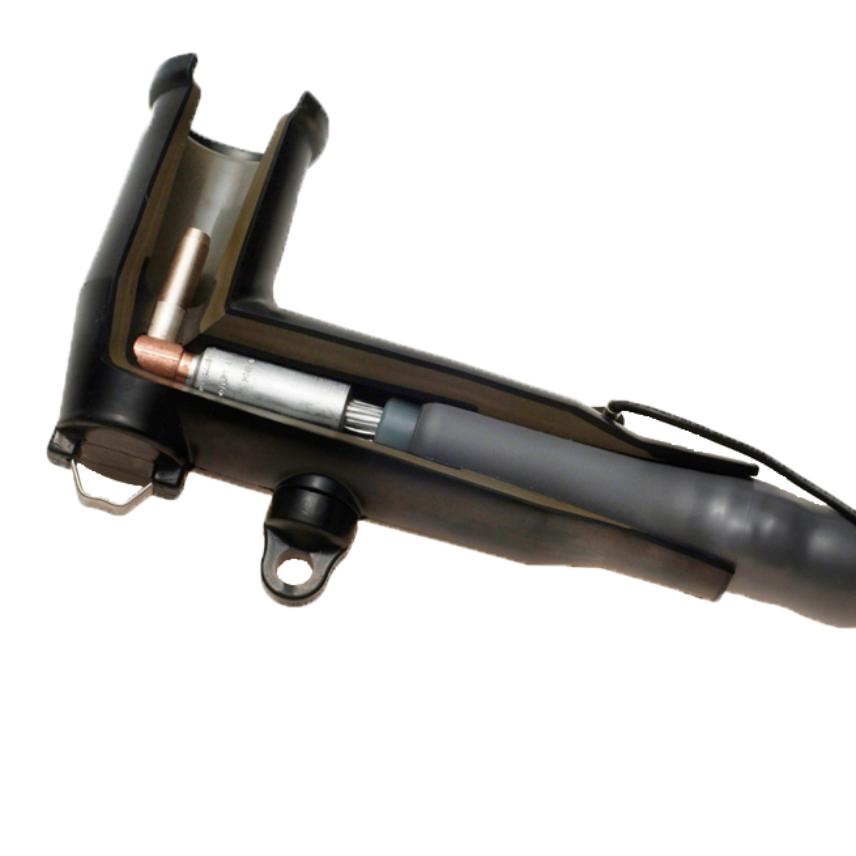

400LR - Interface B - Elbow connector
400LR - Interface B - Elbow connector
Up to 36 kV - 400 A
EUROMOLD Elbow connector
- Rif. Nexans : 400LR
Descrizione
Descrizione
Application
Separable elbow connector (plug-in type) designed to connect polymeric
insulated cable to equipment (transformers, switchgear, motors...).
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design
Kit contents
Caratteristiche
Caratteristiche
Caratteristiche costruttive
Caratteristiche costruttive
Forma connettore
Elbow
Materiale del conduttore
Rame o alluminio
Tecnologia
Slip-0n
Tipo connettore
Female
Caratteristiche dimensionali
Caratteristiche dimensionali
Sezione del conduttore, intervallo
25 ... 240 mm²
Caratteristiche elettriche
Caratteristiche elettriche
Maximal partial discharge at 2Uo
10 pC
Tensione d'impulso
170 kV
Tensione di resistenza dielettrica, 50Hz per 1 min
81 kV
Tensione nominale Uo/U (Um)
18 / 30 (36) kV
Caratteristiche d'utilizzo
Caratteristiche d'utilizzo
Interfaccia
B (400 A)
Risorse
Risorse
Documentazione
400LR catalogue page
pdf — 498.8 kB
Separable screened connector systems
pdf — 2.7 MB
400LR installation instruction
pdf — 519.9 kB
