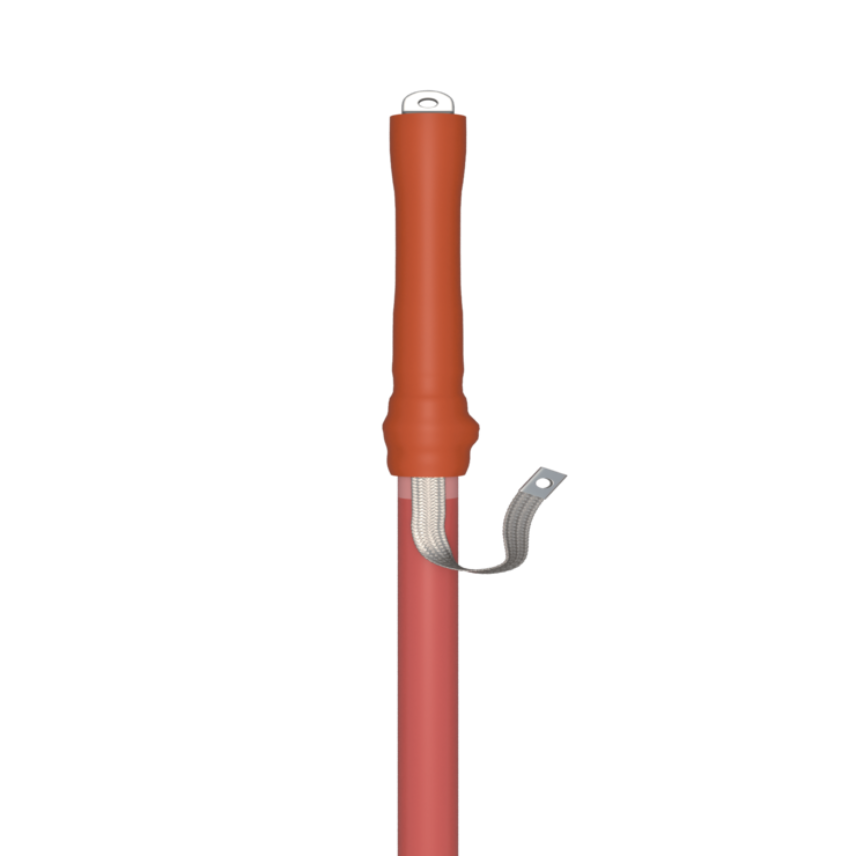

Heat shrink indoor termination MONOi FCi

APPLICATION

The ‘’MONOi FCi’’ terminations are a single component solution, for single core polymeric cables.

TECHNICAL FEATURES

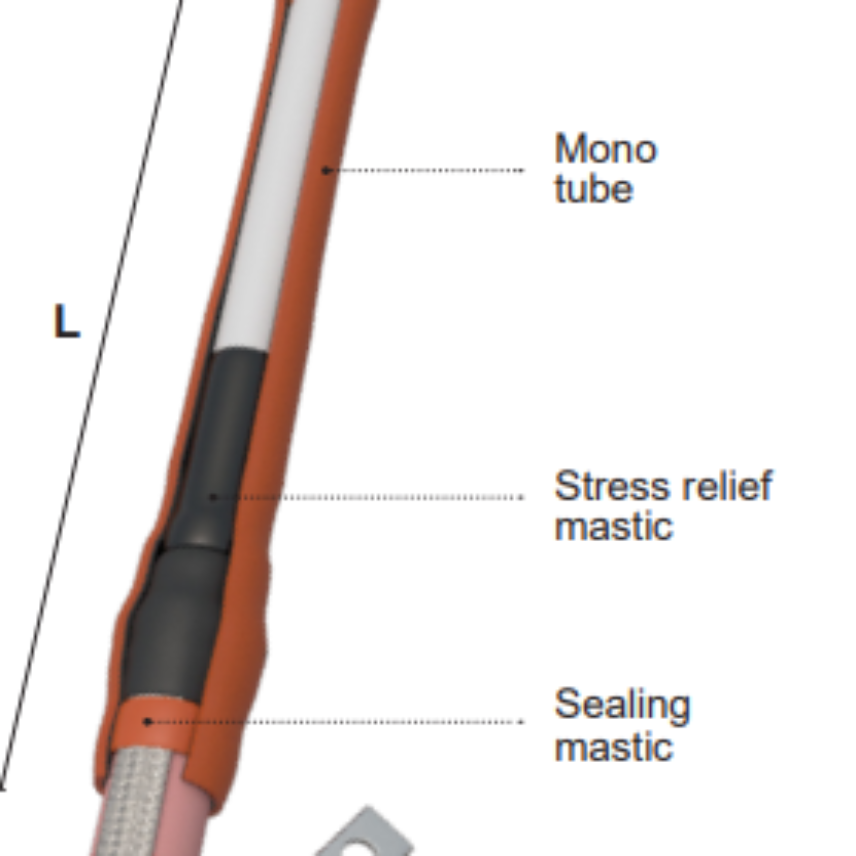

The ‘’MONOi FCi’’ indoor terminations are designed for max system voltages of 42 kV, for compact switchgears as well as for installations where space is limited. Easy, quick to install, reducing installation time and errors. The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic. A cheese-rasp + earthing braid is included in the kit. The design accommodates various conductor lugs. MC types are supplied with “GPH” mechanical conductor lugs. Each “MONOi FCi” termination kit contains material to allow for 3 phase installation. WSK 2.0 type with “T” braid and roll force spring instead of cheese rasp available upon request.
