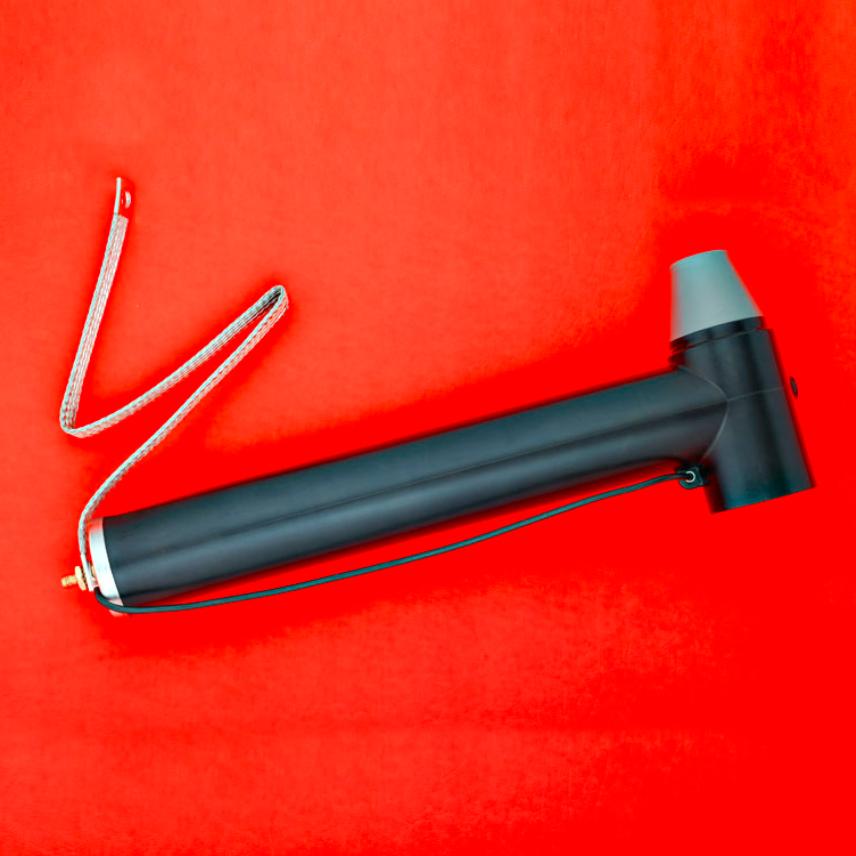

800SA - Interface C - Surge arrester
800SA - Interface C - Surge arrester
Up to 42 kV
EUROMOLD surge arrester
- Rif. Nexans : 800SA
Descrizione
Descrizione
Norme
-
InternazionaleCENELEC HD 629.1; IEC 60099-4
Application
Surge arrester designed to protect 12, 24, 36 and 42 kV class components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching. It has been designed to be used with the 480TB, 484TB and 489TB separable tee connector.
Technical characteristics

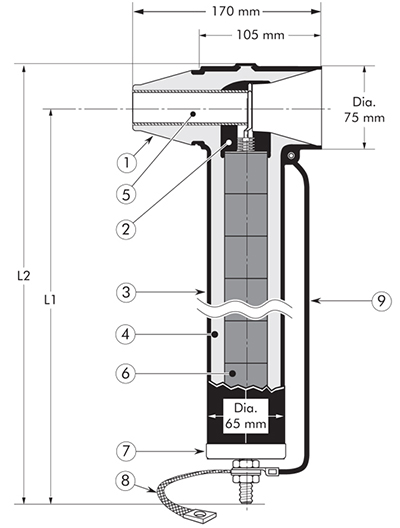

- This surge arrester is a metaloxide varistor surge arrester in an elbow configuration.
- Each arrester is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.
These products are part of our windlink® offer dedicated to windturbines.
Design
Caratteristiche
Caratteristiche
Caratteristiche costruttive
Caratteristiche costruttive
Forma connettore
T-shaped
Tipo connettore
Male
Materiale del conduttore
Rame o alluminio
Tecnologia
Slip-0n
Caratteristiche dimensionali
Caratteristiche dimensionali
Sezione del conduttore, intervallo
0 ... 0 mm²
Caratteristiche elettriche
Caratteristiche elettriche
Tensione nominale Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Tensione di resistenza dielettrica, 50Hz per 1 min
93,5 kV
Tensione d'impulso
0 kV
Caratteristiche d'utilizzo
Caratteristiche d'utilizzo
Interfaccia
C (630 - 1250A)
Risorse
Risorse
Documentazione
800SA catalogue page
pdf — 289.2 kB
800SA installation instruction
pdf — 337.3 kB
