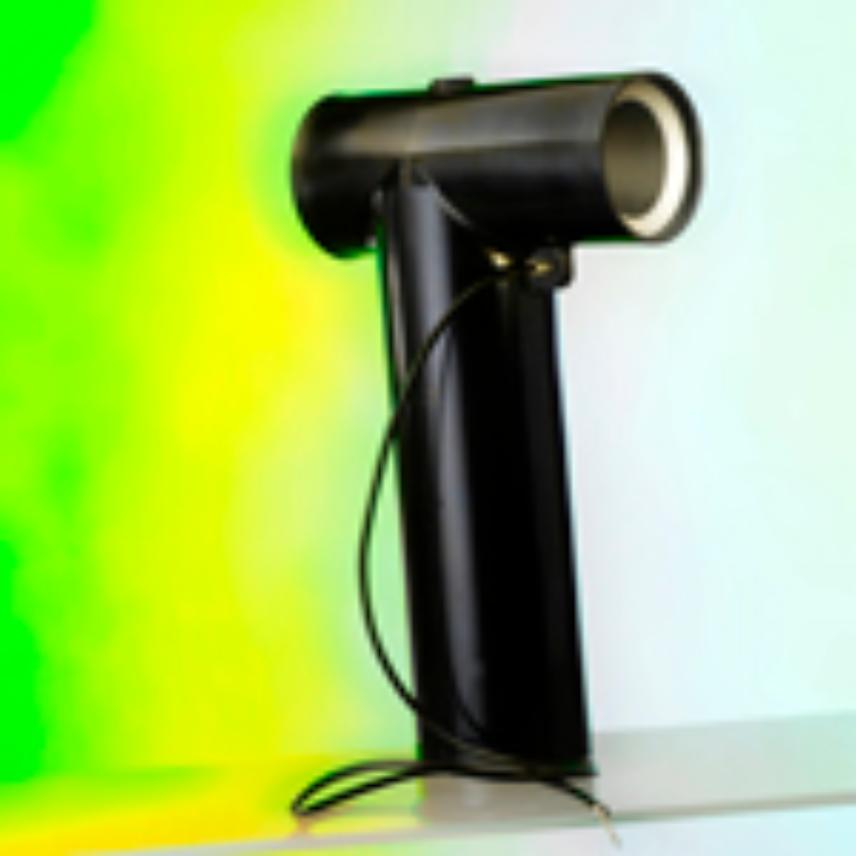

484TB - Interface C - Tee connector
484TB - Interface C - Tee connector
Up to 42 kV - 630 (1250 A)
EUROMOLD tee connector
- Rif. Nexans : 484TB
Descrizione
Descrizione
Norme
-
InternazionaleCENELEC EN 50180; CENELEC HD 629.1
Application
Separable tee shape connector (bolted type) designed to connect polymeric
insulated cable to equipment (transformers, switchgear, motors, ...).
Also connects cable to cable when using the appropriate mating parts.
Technical characteristics
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
These products are part of our windlink® offer dedicated to windturbines.

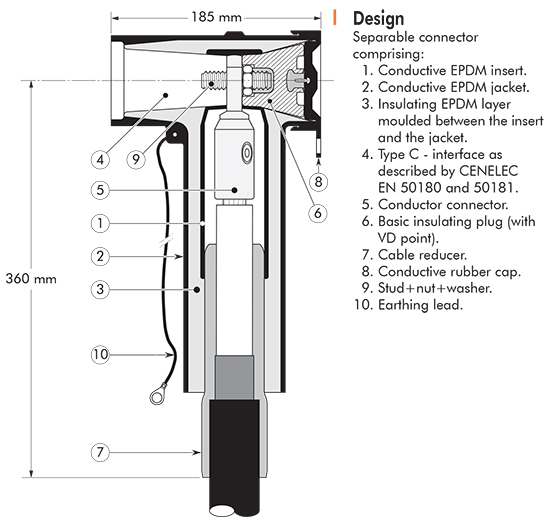

Design

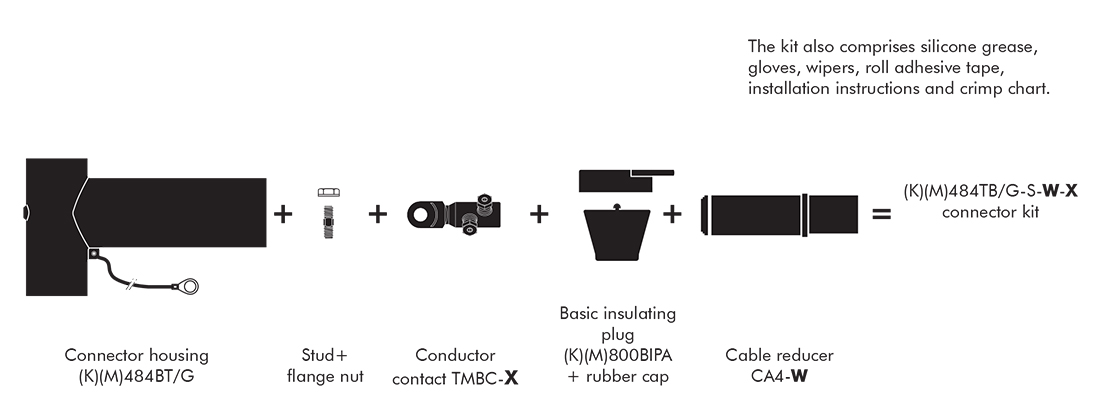

Kit contents
Caratteristiche
Caratteristiche
Caratteristiche costruttive
Caratteristiche costruttive
Forma connettore
T-shaped
Tipo connettore
Female
Materiale del conduttore
Rame o alluminio
Tecnologia
Slip-0n
Caratteristiche dimensionali
Caratteristiche dimensionali
Sezione del conduttore, intervallo
50 ... 630 mm²
Caratteristiche elettriche
Caratteristiche elettriche
Tensione nominale Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Tensione di resistenza dielettrica, 50Hz per 1 min
93,5 kV
Tensione d'impulso
200 kV
Caratteristiche d'utilizzo
Caratteristiche d'utilizzo
Interfaccia
C (630 - 1250A)
Risorse
Risorse
Documentazione
484TB catalogue page
pdf — 507.3 kB
484TB/G installation instruction
pdf — 847.8 kB
484TB test certificate
pdf — 240.6 kB
